Reverse Osmosis Under Counter Water Filters, Filtration and RO Water Purifier Systems
Home Use Under Counter RO Water Filter Systems - You can enjoy clean, safe and healthy filtered drinking water ANYWHERE with our Reverse Osmosis Water Filters!
Reverse Osmosis water filtration and water treatment - Producing fresh and healthy drinking water from all types of water sources, including salt water,
brackish water, heavily contaminated surface water, highly contaminated well water and more...
ALL our Reverse Osmosis Filter Systems are BPA FREE!
Reverse Osmosis Water Filtering effectively removes the following from your water:
• Ultra-Filtration of public water supplies • Exceptional filtration of well water & ground water • Filtration of stored water systems • Desalination of brackish water and salt water for general fresh water use • Filtration of salt water and/or brackish water for safe and healthy drinking water • Models with the addition of a UV Sanitizer provide the healthiest bacteria, virus and microorganism free water available.
If your source water is highly contaminated, and your water treatment requirements require high quality water
with a minimum of chemical manipulation then a Reverse Osmosis filtering system may be just what you
need for clean, healthy drinking water, in some of the harshest of conditions.
Reverse Osmosis is a process for removing dissolved mineral
salts, organic molecules and many other impurities by forcing water under
pressure to pass through a multi process filtration system with semi-permeable membranes.
Since Reverse Osmosis does not occur naturally, it must be
created by applying pressure to the water in order to force it
through the membrane to remove the solids from the water. With pressures from 200 to 400 psig in most applications or even
up to 1,200 psig for sea water desalination and high solids conditions. Click here to learn more about how Reverse Osmosis Filtration works
A number of our Reverse Osmosis water filter systems include
Ultraviolet / UV Sanitizers for the ultimate assurance of clean and healthy water.
The addition of UV disinfection assures the removal of 99.99% of all
micro-organisms from your drinking water (
Click HERE to view list of Microorganisms disinfected by UV).
For any RO filter system that does not include an integrated UV water purifier, you can always add any of our
170+ UV Water Purifiers currently offered as an additional water treatment component for the added assurance of
the healthiest of clean, pure and sanitized water in your home, office, or business.
FREE Shipping is always offered for orders shipped inside the Continental USA. We are also able to (and often do) ship our water
filtering and treatment systems worldwide - South America, Africa, the Middle East and other
locations. Contact us directly for information and pricing - DIRECT PHONE 1-561-660-3250.
We have shipped our water filter systems worldwide.
We have also custom designed water filter systems that are currently in use in some of the
most remote regions of the the world, including the Caribbean, South America, Africa,
Afghanistan, the Middle East and more. Please contact us directly and we'll be happy
to discuss designing an affordable and efficient custom water filtration and treatment system for your specific requirements.
From remote homes, Caribbean Island resorts and homes, to remote towns and villages
in South America, Africa and the Middle East, Purest Filters has been providing the best and most
efficient in water filtration and water treatment systems in the U.S. and beyond since 1997.
We are ALWAYS happy to help you in your selection
and answer any questions you may have regarding your own particular water
filtering issues - Feel free to call us DIRECT PHONE. You will not speak with a
salesperson or customer service rep, you will speak directly with the water
treatment specialist and owner of Purest Filters - 1-561-660-3250
SCROLL DOWN TO VIEW ALL & ORDER
NO SALES TAX for orders outside of FLORIDA - Quantity Discounts are always Available
FREE GROUND SHIPPING** for all orders within the Continental U.S.
For orders outside the Continental USA -
Contact us directly for additional SHIPPING CHARGES
Custom designed RO water filtering systems with optional world wide shipping - We regularly design, build and ship our home and commercial use
Reverse Osmosis Water Filtering Systems outside of the U.S. - South America, Africa, The Middle East and all over the World - Contact us directly if you have
questions or require shipping outside of the Continental U.S.
Reverse Osmosis - The CQ Series of RO Water Filters & Water Purifiers
CQ Reverse Osmosis / Ultrafiltration
water filtering systems are a revolutionary breakthrough in the
reverse osmosis and Ultrafiltration water filter industry.
Utilizing the latest technologies in the water industry, coupled with over 40 years of manufacturing expertise, The
CQ water filtering systems provide you with healthy, great-tasting water conveniently at the most
affordable prices. The CQ Thunder RO water filter systems are
attractive, easy to install and use and with the multi stage filtration - remove
more than 500 contaminants from your water* (*if present in the water).
The CQ line of Reverse Osmosis water filters offers 50, 75
and 100 Gallons per day RO water filtering systems at exceptional pricings from
$278 to $692. Many of the following featured water filters include UV water sanitizers for that added
assurance of the cleanest and healthiest in drinking water. All CQ Water Filters are BPA FREE.
Through years of experience, research have produced totally new most effective, healthiest
Reverse Osmosis / Ultrafiltration systems in todays market. CQ Reverse Osmosis / Ultrafiltration systems
are available at 12 to 17-stages of water filtering - the number of
filtering stages varying with the model of Reverse Osmosis / Ultrafiltration system you choose.
CQ Reverse Osmosis / Ultrafiltration water
systems produce up to 100 gallons of top quality clean and healthy water per day and
remove up to 99.9% of undesirable contaminants and filter particles as small as
1/1000 of a micron by forcing untreated water through a semi-permeable membrane.
Pressure forces the water to flow in the reverse direction to the direction of flow in natural osmosis.
CQ Reverse Osmosis / Ultrafiltration water systems have compact designs that can easily fit beneath
the kitchen sink. Supplied with a complete installation kit that includes a
European lead-free long-reach designer faucet, CQ 4 gallons stainless steel pressurized holding tank with a polypropylene inner liner and a 3.2 gallon capacity, all interconnecting color-coded
tubing, filter cartridges, Ultrafiltration membrane, RO membrane, and installation hardware
is included for easy installation.
The influent waters psi will have a direct affect on GPD (Gallons per day)
production. The following CQ RO systems are designed to work in a psi range
from 35-60, with 60 psi being optimum. If your water pressure is low or you have
a high TDS (Total dissolved solids) please consider a system manufactured with a pump. Units manufactured

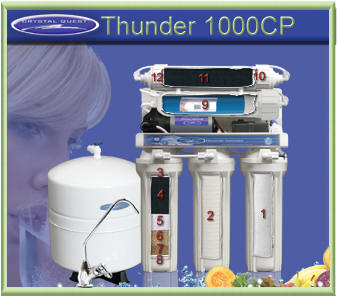

with a pressure pump and/or UV water sanitizer require standard 110V household power.
Optional additional water treatment filtering choices with all our
CQ RO Systems includes:
Increase filtering capacity from 50 Gallons per day to; 75 or 100 gallons per day
Nitrate filtering, Fluoride filtering, and Arsenic filtering also available
Click on the CQ Under Counter RO home water filter model name below to view all the information about that RO water filter system and to order,
or SCROLL DOWN the page to view all units. Always FREE Ground SHIPPING in the Continental U.S.
Reverse Osmosis
Under Counter Models Click Model # Below to View & Order
OR Scroll Down to View ALL these RO Systems
Dimensions: 16"L x 8"W x 21"H + 4" to change cartridge; Holding Tank 15"H x 11"D

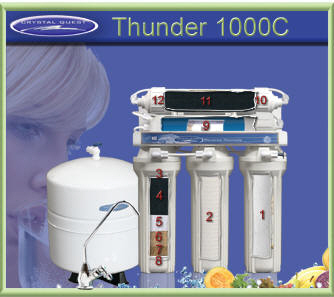

Water travels through 12 stages of filtration:
Stage/s
1
Water travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane.
Ultrafiltration (UF) is an important purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration.
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated activated carbon (GAC). GAC is universally recognized and
widely used as an effective adsorbent for a wide variety of organic contaminants, such as
chlorine (99.9%), chemicals linked to cancer (THM's, benzine) pesticides,
herbicides, insecticides, volatile organic compounds (VOC's), PCB's,
MTBE's and hundreds of other chemical contaminants that may be present in water,
bad taste, and odors from your drinking water.
Click here to read more about GAC.
5
Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water. It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are
oxidized into insoluble matter and attach to the surface of the media. Heavy
metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and
other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media.
8
Water flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or elimination of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters particles as
small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals,
minerals) most microorganisms including cryptosporidium and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration.
10 & 12
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11
Water passes through granulated activated carbon (GAC).
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 21"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF
Membrane/stage 13) x 11"D

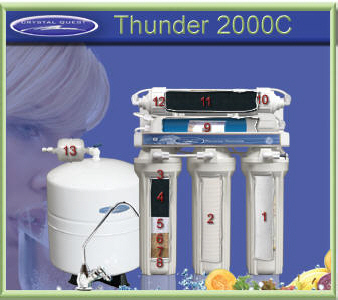

Water travels through 13 stages of filtration:
Stage/s
1
Water
travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important
purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated activated carbon (GAC). GAC is universally recognized and widely used
as an effective adsorbent for a wide variety of organic contaminants, such as
chlorine (99.9%), chemicals linked to cancer (THM's, benzine) pesticides,
herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and
hundreds of other chemical contaminants that may be present in water, bad taste,
and odors from your drinking water.
Click here to read more about GAC
5
Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media made of a special high-purity alloy
blend of two dissimilar metals - copper and zinc. Representing
a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are
oxidized into insoluble matter and attach to the surface of the media. Heavy
metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and
other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or elimination of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters particles as
small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals,
minerals) most microorganisms including cryptosporidium and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 12
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11
Water passes through granulated activated carbon (GAC).
13
Water travels through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration. UF
is effective for the removal of colloids, proteins, bacteria, viruses,
parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water contaminants known today.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H x 11"D

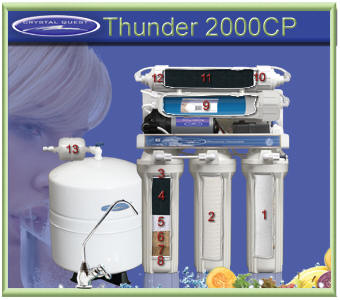

Water travels through 13 stages of filtration
including a UV / Ultraviolet Water Sanitizer & Purifier (110V):
Stage/s
1
Water travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important
purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated activated carbon (GAC). GAC is
universally recognized and widely used as an effective adsorbent for a wide
variety of organic contaminants, such as chlorine (99.9%), chemicals linked to
cancer (THM's, benzine) pesticides, herbicides, insecticides, volatile organic
compounds (VOC's), PCB's, MTBE's and hundreds of other chemical contaminants
that may be present in water, bad taste, and odors from your drinking water.
Click here to read more about GAC
5
Water flows through the ion exchange resin,
reducing heavy metals such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing a new and unique way of water processing medium which by its
natural process of electrochemical oxidation/reduction and adsorption action
reduces and/or removes many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are
oxidized into insoluble matter and attach to the surface of the media. Heavy
metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and
other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or
elimination
of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters particles as
small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals,
minerals) most microorganisms including cryptosporidium and giardia, and most
inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 12
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11
Water passes through granulated activated carbon (GAC).
13
Water passes through an
Ultraviolet Water Sterilizer System manufactured with axial flow reactors in 304 stainless steel.
The hard glass germicidal lamps provide an economical way of treating water
requiring a 99.99% reduction of bacteria and virus and protozoa. This process is
accomplished without adding any harmful chemicals to your drinking water.
CQ Ultraviolet Water Sterilizer System is the most ecological way of treating your water.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF Membrane/stage 14) x 11"D
Water travels through 14 stages of filtration
including a UV / Ultraviolet Water Purifier & Sanitizer (110V):
Stage/s
1
Water travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane.
Ultrafiltration (UF) is an important purification technology used for the production of high-purity
water. UF is effective for the removal of colloids, proteins, bacteria, viruses,
parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated activated carbon (GAC). GAC is
universally recognized and widely used as an effective adsorbent for a wide
variety of organic contaminants, such as chlorine
(99.9%), chemicals linked to cancer (THM's, benzine) pesticides, herbicides,
insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and
hundreds of other chemical contaminants that may be present in water, bad taste,
and odors from your drinking water.
Click here to read more about GAC
5
Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process)
media made of a special high-purity alloy blend of two dissimilar metals -
copper and zinc. Representing a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water. It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen
sulfide are oxidized into insoluble matter and attach to the surface of the
media. Heavy metals such as lead, mercury, copper, nickel, chromium, cadmium,
aluminum, and other dissolved metals are removed from the water by the natural
process of electrochemical process. They are attracted to the surface of the
media, much like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water flows through another one-micron filtration pad for further reduction of undesirable particles. The
end result is a great reduction or elimination of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters particles as small as 1/1000 of a
micron as most inorganic chemicals (such as salts, metals, minerals) most
microorganisms including cryptosporidium and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 12
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11
Water passes through granulated activated carbon (GAC).
13
Water passes through an Ultraviolet Water Sterilizer System manufactured
with axial flow reactors in 304 stainless steel. The hard glass germicidal lamps
provide an economical way of treating water requiring a 99.99% reduction of
bacteria and virus and protozoa. This process is accomplished without adding any
harmful chemicals to your drinking water. CQ Ultraviolet Water
Sterilizer System is the most ecological way of treating your water.
14
Water travels through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration. UF
is effective for the removal of colloids, proteins, bacteria, viruses,
parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water contaminants known today.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 21"H + 4" to change cartridge; Holding Tank 15"H x 11"D
Water travels through 12 stages of filtration
including the Alkalinize, mineralizer and oxidation cartridge option:

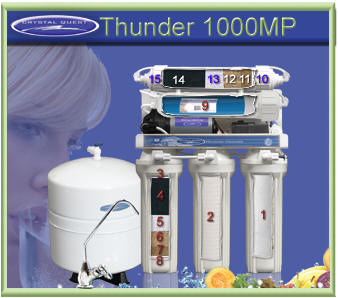

This RO water filtration system also includes a
110V Pressure Pump - For use
in low water pressure environments
Stage/s
1
Water travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to
extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important
purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated activated carbon (GAC). GAC is universally recognized
and widely used as an effective adsorbent for a wide variety of organic
contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's,
benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's),
PCB's, MTBE's and hundreds of other chemical contaminants that may be present in
water, bad taste, and odors from your drinking water.
Click here to read more about GAC
5
Water flows through the ion exchange resin, reducing heavy metals such as lead,
copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the
surface of the media. Heavy metals such as lead, mercury, copper, nickel,
chromium, cadmium, aluminum, and other dissolved metals are removed from the
water by the natural process of electrochemical process. They are attracted to
the surface of the media, much like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or
elimination
of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters particles as small as 1/1000 of a
micron as most inorganic chemicals (such as salts, metals, minerals) most
microorganisms including cryptosporidium and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 12
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11
Water passes through granulated activated carbon (GAC).
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 21"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF
Membrane/stage 13) x 11"D
Water travels through 13 stages of filtration:
This RO water system also includes a
110V Pressure Pump - For use in low water pressure environments
Stage/s
1
Water travels through a 5 micron solid carbon cartridge for removing volatile organic carbon
compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important
purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water
passes through granulated activated carbon (GAC). GAC is universally recognized
and widely used as an effective adsorbent for a wide variety of organic
contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's,
benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's),
PCB's, MTBE's and hundreds of other chemical contaminants that may be present in
water, bad taste, and odors from your drinking water.
Click here to read more about GAC
5
Water flows through the ion exchange resin, reducing heavy metals such as lead,
copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the
surface of the media. Heavy metals such as lead, mercury, copper, nickel,
chromium, cadmium, aluminum, and other dissolved metals are removed from the
water by the natural process of electrochemical process. They are attracted to
the surface of the media, much like a magnet. The media inhibits bacterial
growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water
flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or
elimination of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes
and filters particles as small as 1/1000 of a micron as most inorganic chemicals
(such as salts, metals, minerals) most microorganisms including cryptosporidium
and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 12
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11
Water passes through granulated activated carbon (GAC).
13
Water travels through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration. UF is effective for the removal
of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens
(e.g., gram-negative bacterial endotoxins), other organic molecules larger than
.01 micron, and most other water contaminants known today.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H x 11"D
Water travels
through 13 stages of filtration
including a UV / Ultraviolet Sanitizer (110V):
This RO water system also includes a
110V Pressure
Pump - For use in low water pressure environments
Stage/s
1
Water travels
through a 5 micron solid carbon cartridge for removing volatile organic carbon
compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to
extend the life of the system.
2
Water passes
through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important
purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water
flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water
passes through granulated activated carbon (GAC). GAC is universally recognized
and widely used as an effective adsorbent for a wide variety of organic
contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's,
benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's),
PCB's, MTBE's and hundreds of other chemical contaminants that may be present in
water, bad taste, and odors from your drinking water.
Click here to read more about GAC
5
Water flows
through the ion exchange resin, reducing heavy metals such as lead, copper,
aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing
a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are
oxidized into insoluble matter and attach to the surface of the media. Heavy
metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and
other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water
flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or
elimination
of a wide variety of contaminants.
9
Water passes through a CQ reverse
osmosis membrane, which removes and filters particles as small as 1/1000 of a
micron as most inorganic chemicals (such as salts, metals, minerals) most
microorganisms including cryptosporidium and giardia, and most inorganic
contaminants.
Click here to view more about Stage 9 filtration
10 & 12
Water
flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11
Water passes
through granulated activated carbon (GAC).
13
Water passes through an
Ultraviolet
Water Sterilizer System manufactured with axial flow reactors in 304 stainless
steel. The hard
glass germicidal lamps provide an economical way of treating water requiring a
99.99% reduction of bacteria and virus and protozoa. This process is
accomplished without adding any harmful chemicals to your drinking water.
CQ Ultraviolet Water Sterilizer System is the most ecological way of
treating your water.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF
Membrane/stage 14) x 11"D
Water travels
through 14 stages of filtration
including a UV / Ultraviolet Sanitizer (110V):
This RO water system also includes a
110V Pressure
Pump - For use in low water pressure environments
Stage/s
1
Water
travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to
extend the life of the system.
2
Water passes
through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important
purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water
flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes
through granulated activated carbon (GAC). GAC is universally recognized and
widely used as an effective adsorbent for a wide variety of organic
contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's,
benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's),
PCB's, MTBE's and hundreds of other chemical contaminants that may be present in
water, bad taste, and odors from your drinking water.
Click here to read more about GAC
5
Water flows
through the ion exchange resin, reducing heavy metals such as lead, copper,
aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process)
media made of a special high-purity alloy blend of two dissimilar metals -
copper and zinc. Representing
a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are
oxidized into insoluble matter and attach to the surface of the media. Heavy
metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and
other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water
flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or
elimination
of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes
and filters particles as small as 1/1000 of a micron as most inorganic chemicals
(such as salts, metals, minerals) most microorganisms including cryptosporidium
and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 12
Water
flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11
Water passes
through granulated activated carbon (GAC).
13
Water passes through an Ultraviolet Water Sterilizer System manufactured
with axial flow reactors in 304 stainless steel. The hard glass germicidal lamps
provide an economical way of treating water requiring a 99.99% reduction of
bacteria and virus and protozoa. This process is accomplished without adding any
harmful chemicals to your drinking water. CQ Ultraviolet Water
Sterilizer System is the most ecological way of treating your water.
14
Water
travels through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration. UF
is effective for the removal of colloids, proteins, bacteria, viruses,
parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water
contaminants known today.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 21"H + 4" to change cartridge; Holding Tank 15"H x 11"D

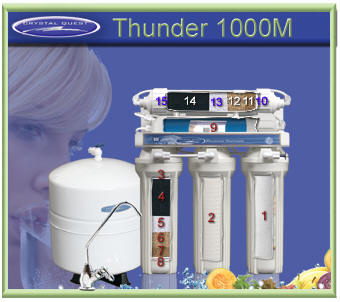

Water travels
through 15 stages of filtration:
Stage/s
1
Water
travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to
extend the life of the system.
2
Water passes
through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important
purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water
flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes
through granulated activated carbon (GAC). GAC is universally recognized and
widely used as an effective adsorbent for a wide variety of organic
contaminants, such as chlorine
(99.9%), chemicals linked to cancer (THM's, benzine) pesticides, herbicides,
insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and hundreds of
other chemical contaminants that may be present in water, bad taste, and odors
from your drinking water.
Click here to read more about GAC
5
Water flows
through the ion exchange resin, reducing heavy metals such as lead, copper,
aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process)
media made of a special high-purity alloy blend of two dissimilar metals -
copper and zinc. Representing
a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are
oxidized into insoluble matter and attach to the surface of the media. Heavy
metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and
other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water
flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or
elimination
of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters particles as
small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals,
minerals) most microorganisms including cryptosporidium and giardia, and most
inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 15
Water
flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11 & 12
Water flows through another bed of media made of a special
high-purity alloy blend of two dissimilar metals - copper and zinc. it is a
major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
13
Water flows
through another ion exchange resin, reducing heavy metals such as lead, copper,
aluminum, and water hardness.
14
Water passes
through granulated activated carbon (GAC).
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 21"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF
Membrane/stage 16) x 11"D

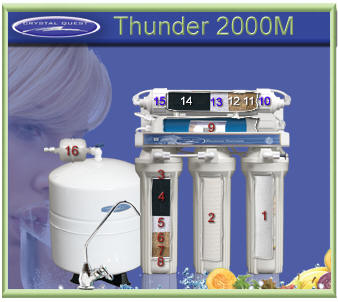

Water travels
through 16 stages of filtration:
Stage/s
1
Water travels through a 5 micron
solid carbon cartridge for removing volatile organic carbon compounds (VOC's),
insecticides, pesticides and industrial solvents and traps
particles larger than 5 micron including sediment, silt, sand and dirt. It also
helps to extend the life of the system.
2
Water passes through a .01 micron
Ultrafiltration (UF) membrane.
Ultrafiltration (UF) is an important purification technology used for the
production of
high-purity
water. UF is effective for the removal of colloids, proteins, bacteria, viruses,
parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other
organic molecules larger than .01 micron, and most other water contaminants
known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water
flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water
passes through granulated activated carbon (GAC). GAC is universally recognized
and widely used as an effective adsorbent for a wide variety of organic
contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's,
benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's),
PCB's, MTBE's and hundreds of other chemical contaminants that may be present in
water, bad taste, and odors from your drinking
water. Click here to read more about GAC
5
Water flows through the ion exchange resin, reducing heavy metals
such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing
a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water. It is a
major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are
oxidized into insoluble matter and attach to the surface of the media. Heavy
metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and
other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water
flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or
elimination of a wide variety of
contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters particles as
small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals,
minerals) most microorganisms including cryptosporidium and giardia, and most
inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 15
Water flows through another one -
micron filter pads(1 micron equals 1/25,000th of an inch), which removes
suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium),
sand, rust, dirt, and other undissolved matter.
11 & 12
Water flows through another bed of media made of a special
high-purity alloy blend of two dissimilar metals - copper and zinc. it is a
major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
13
Water flows through another ion exchange resin, reducing heavy
metals such as lead, copper, aluminum, and water hardness.
14
Water passes through granulated activated carbon (GAC).
16
Water
travels through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration. UF
is effective for the removal of colloids, proteins, bacteria, viruses,
parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water
contaminants known today.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H x 11"D
Water travels
through 16 stages of filtration
including a UV / Ultraviolet Water Sanitizer (110V):
Stage/s
1
Water travels through a 5 micron
solid carbon cartridge for removing volatile organic carbon compounds (VOC's),
insecticides, pesticides and industrial solvents and traps particles larger than
5 micron including sediment, silt, sand and dirt. It also helps to extend the
life of the system.
2
Water passes through a
.01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important purification technology used for the
production of high-purity water. UF is effective for the removal of colloids, proteins,
bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative
bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water
contaminants known today. Click here to view more about Stage 2's Ultrafiltration
3
Water
flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated
activated carbon (GAC). GAC is universally recognized and widely used as an
effective adsorbent for a wide variety of organic contaminants, such as chlorine (99.9%), chemicals linked
to cancer (THM's, benzine) pesticides, herbicides, insecticides, volatile
organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical
contaminants that may be present in water, bad taste, and odors from your
drinking water.
Click here to read more about GAC
5
Water flows through the ion
exchange resin, reducing heavy metals such as lead, copper, aluminum, and water
hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing
a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen
sulfide are oxidized into insoluble matter and attach to the surface of the
media. Heavy metals such as lead, mercury, copper, nickel, chromium, cadmium,
aluminum, and other dissolved metals are removed from the water by the natural
process of electrochemical process. They are attracted to the surface of the
media, much like a magnet. The media inhibits bacterial growth throughout the
entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water flows through another
one-micron filtration pad for further reduction of undesirable particles. The
end result is a great reduction or
elimination
of a wide variety of contaminants.
9
Water passes through
a CQ reverse osmosis membrane, which removes and filters
particles as small as 1/1000 of a micron as most
inorganic chemicals (such as salts, metals, minerals) most microorganisms
including cryptosporidium and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 15
Water
flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11 & 12
Water flows through another bed of media made of
a special high-purity alloy blend of two dissimilar metals - copper and zinc. it
is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
13
Water flows through another ion
exchange resin, reducing heavy metals such as lead, copper, aluminum, and water
hardness.
14
Water passes through granulated
activated carbon (GAC).
16
Water passes through an
Ultraviolet Water
Sterilizer System manufactured with axial flow reactors in 304 stainless steel.
The hard glass germicidal lamps provide an economical way
of treating water requiring a 99.99% reduction of bacteria and virus and
protozoa. This process is accomplished without adding any harmful chemicals to
your drinking water.
CQ Ultraviolet Water Sterilizer System
is the most ecological way of treating your water.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF Membrane/stage 17) x 11"D
Water travels through 17 stages of filtration
including a UV / Ultraviolet Sanitizer (110V):
Stage/s
1
Water travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane.
Ultrafiltration (UF) is an important purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated activated carbon (GAC). GAC is universally recognized and
widely used as an effective adsorbent for a wide variety of organic
contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's,
benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's),
PCB's, MTBE's and hundreds of other chemical contaminants that may be present in
water, bad taste, and odors from your drinking water.
Click here to read more about GAC
5
Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process)
media made of a special high-purity alloy blend of two dissimilar metals -
copper and zinc. Representing a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the
surface of the media. Heavy metals such as lead, mercury, copper, nickel,
chromium, cadmium, aluminum, and other dissolved metals are removed from the
water by the natural process of electrochemical process. They are attracted to
the surface of the media, much like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or elimination of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters particles as
small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals, minerals) most microorganisms including cryptosporidium and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 15
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11 & 12
Water flows through another bed of media made of a special
high-purity alloy blend of two dissimilar metals - copper and zinc. it is a
major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
13
Water flows through another ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.
14
Water passes through granulated activated carbon (GAC).
16
Water passes through an Ultraviolet Water Sterilizer System manufactured
with axial flow reactors in 304 stainless steel. The hard glass germicidal lamps
provide an economical way of treating water requiring a 99.99% reduction of
bacteria and virus and protozoa. This process is accomplished without adding any
harmful chemicals to your drinking water. CQ Ultraviolet Water
Sterilizer System is the most ecological way of treating your water.
17
Water travels through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration. UF
is effective for the removal of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water contaminants known today.
Comes with a complete installation kit that includes a European lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 21"H + 4" to change cartridge; Holding Tank 15"H x 11"D
Water travels
through 15 stages of filtration:
This RO water system also includes a
110V Pressure
Pump - For use in low water pressure environments
Stage/s
1
Water
travels through a 5 micron solid carbon cartridge for removing volatile organic
carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles
larger than 5 micron including sediment, silt, sand and dirt. It also helps to
extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important
purification technology used for the production of high-purity water. UF is effective for the
removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron,
and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water
flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated
activated carbon (GAC). GAC is universally recognized and widely used as an
effective adsorbent for a wide variety of organic contaminants, such as chlorine (99.9%), chemicals linked
to cancer (THM's, benzine) pesticides, herbicides, insecticides, volatile
organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical
contaminants that may be present in water, bad taste, and odors from your
drinking water.
Click here to read more about GAC
5
Water flows
through the ion exchange resin, reducing heavy metals such as lead, copper,
aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing
a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the
surface of the media. Heavy metals such as lead, mercury, copper, nickel,
chromium, cadmium, aluminum, and other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water
flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or
elimination
of a wide variety of contaminants.
9
Water passes through a CQ® reverse osmosis membrane, which removes
and filters particles as small as 1/1000 of a micron as most inorganic chemicals
(such as salts, metals, minerals) most microorganisms including cryptosporidium
and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 15
Water
flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11 & 12
Water flows through another bed of media made of a special
high-purity alloy blend of two dissimilar metals - copper and zinc. it is a
major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
13
Water flows
through another ion exchange resin, reducing heavy metals such as lead, copper,
aluminum, and water hardness.
14
Water
passes through granulated
activated carbon (GAC).
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 21"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF
Membrane/stage 16) x 11"D
Water travels
through 16 stages of filtration:
This RO water system also includes a
110V Pressure Pump - For use in low water pressure environments
Stage/s
1
Water travels through a 5 micron solid carbon
cartridge for removing volatile organic carbon compounds (VOC's), insecticides,
pesticides and industrial solvents and traps particles larger than 5 micron including
sediment, silt, sand and dirt. It also helps to extend the life of the system.
2
Water passes through a .01 micron Ultrafiltration (UF) membrane.
Ultrafiltration (UF) is an important purification technology used for the
production of high-purity water. UF is effective for the removal of colloids, proteins, bacteria, viruses,
parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other
organic molecules larger than .01 micron, and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated activated carbon (GAC). GAC is universally recognized and
widely used as an effective adsorbent for a wide variety of organic
contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's,
benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's),
PCB's, MTBE's and hundreds of other chemical contaminants that may be present in
water, bad taste, and odors from your drinking water.
Click here to read more about GAC
5
Water flows through the ion exchange resin,
reducing heavy metals such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water.
It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are
oxidized into insoluble matter and attach to the surface of the media. Heavy
metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and
other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or elimination of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes
and filters particles as small as 1/1000 of a micron as most inorganic chemicals
(such as salts, metals, minerals) most microorganisms including cryptosporidium
and giardia, and most inorganic contaminants.
Click here to view more about Stage 9 filtration
10 & 15
Water flows through another one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11 & 12
Water flows through another bed of media made of a special high-purity alloy blend of two dissimilar
metals - copper and zinc. it is a major advancement in water treatment
technology that works on the electro-chemical and
spontaneous-oxidation-reduction (REDOX) principles. Chlorine is instantaneously
and almost inexhaustibly oxidized.
13
Water flows through another ion exchange resin, reducing heavy metals such as lead, copper,
aluminum, and water hardness.
14
Water passes through granulated activated carbon (GAC).
16
Water travels through a
.01 micron Ultrafiltration (UF) membrane. Ultrafiltration. UF is effective for
the removal of colloids, proteins, bacteria, viruses, parasites, protozoa and
pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules
larger than .01 micron, and most other water contaminants known today.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H x 11"D
Water travels
through 16 stages of filtration
including a UV / Ultraviolet Water Sanitizer (110V):
This RO water system also includes a
110V Pressure
Pump - For use in low water pressure environments
Stage/s
1
Water travels through a 5 micron solid carbon cartridge for removing volatile
organic carbon compounds (VOC's), insecticides, pesticides and industrial
solvents and traps particles larger than 5 micron including sediment, silt, sand and dirt. It also helps to
extend the life of the system.
2
Water passes through a
.01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important purification technology used for the
production of high-purity water. UF is effective for the removal of colloids, proteins,
bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins),
other organic molecules larger than .01 micron, and most other water contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through
pre one - micron filter pads (1 micron equals 1/25,000th of an inch), which
remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated
activated carbon (GAC). GAC is universally recognized and widely used as an
effective adsorbent for a wide variety of organic contaminants, such as chlorine (99.9%), chemicals linked
to cancer (THM's, benzine) pesticides, herbicides, insecticides, volatile
organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical
contaminants that may be present in water, bad taste, and odors from your
drinking water.
Click here to read more about GAC
5
Water flows through the ion
exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water. It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized.
Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the
surface of the media. Heavy metals such as lead, mercury, copper, nickel,
chromium, cadmium, aluminum, and other dissolved metals are removed from the water by the natural process of
electrochemical process. They are attracted to the surface of the media, much
like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water
flows through another one-micron filtration pad for further reduction of
undesirable particles. The end result is a great reduction or elimination
of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which removes and filters
particles as small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals, minerals) most microorganisms
including cryptosporidium and giardia, and most inorganic contaminants. Click here to view more about Stage 9 filtration
10 & 15
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an
inch), which removes suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11 & 12
Water flows through another bed of media made of a special high-purity alloy blend of two dissimilar metals -
copper and zinc. it is a major advancement in water treatment technology that
works on the electro-chemical and spontaneous-oxidation-reduction (REDOX)
principles. Chlorine is instantaneously and almost inexhaustibly oxidized.
13
Water flows through another ion exchange resin, reducing heavy metals such as
lead, copper, aluminum, and water hardness.
14
Water passes through granulated activated carbon (GAC).
16
Water passes through an Ultraviolet Water
Sterilizer System manufactured with axial flow reactors in 304 stainless steel.
The hard glass germicidal lamps provide an economical way
of treating water requiring a 99.99% reduction of bacteria and virus and
protozoa. This process is accomplished without adding any harmful chemicals to
your drinking water.
CQ Ultraviolet Water Sterilizer System
is the most ecological way of treating your water.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
Dimensions: 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF
Membrane/stage 17) x 11"D
Water travels
through 17 stages of filtration
including a UV / Ultraviolet Water Sanitizer (110V):
This RO water system also includes a
110V Pressure
Pump - For use in low water pressure environments
Stage/s
1
Water travels through a 5 micron solid carbon cartridge for removing volatile
organic carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles larger than 5 micron including sediment,
silt, sand and dirt. It also helps to extend the life of the system.
2
Water passes through
a
.01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important purification technology used for the
production of high-purity water. UF is effective for the removal of colloids, proteins,
bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative
bacterial endotoxins), other organic molecules larger than .01 micron, and most other water
contaminants known today.
Click here to view more about Stage 2's Ultrafiltration
3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
4
Water passes through granulated
activated carbon (GAC). GAC is universally recognized and widely used as an
effective adsorbent for a wide variety of organic contaminants, such as
chlorine (99.9%), chemicals linked to cancer (THM's, benzine) pesticides,
herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and
hundreds of other chemical contaminants that may be present in water, bad taste, and odors from your drinking water.
Click here to read more about GAC
5
Water flows through the ion exchange resin,
reducing heavy metals such as lead, copper, aluminum, and water hardness.
6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media
made of a special high-purity alloy blend of two dissimilar metals - copper and
zinc. Representing a new and unique way of water processing medium which by its natural process of
electrochemical oxidation/reduction and adsorption action reduces and/or removes
many unwanted contaminants from water. It is a major advancement in water treatment technology that works on the
electro-chemical and spontaneous-oxidation-reduction (REDOX) principles.
Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the
surface of the media. Heavy metals such as lead, mercury, copper, nickel,
chromium, cadmium, aluminum, and other dissolved metals are removed
from the water by the natural process of electrochemical process. They are
attracted to the surface of the media, much like a magnet. The media inhibits
bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media
8
Water flows through another one-micron filtration pad for further reduction of undesirable
particles. The end result is a great reduction or elimination of a wide variety of contaminants.
9
Water passes through a CQ reverse osmosis membrane, which
removes and filters particles as small as 1/1000 of a
micron as most inorganic chemicals (such as salts, metals, minerals) most
microorganisms including cryptosporidium and giardia, and most inorganic contaminants. Click here to view more about Stage 9 filtration
10 & 15
Water flows through another one - micron filter pads (1 micron equals 1/25,000th of an
inch), which remove suspended particles such as silt, sediment, cyst (Giardia,
Cryptosporidium), sand, rust, dirt, and other undissolved matter.
11 & 12
Water flows through another bed of media made of a special high-purity alloy
blend of two dissimilar metals - copper and zinc. it is a major advancement in
water treatment technology that works on the electro-chemical and
spontaneous-oxidation-reduction (REDOX) principles. Chlorine is instantaneously
and almost inexhaustibly oxidized.
13
Water flows through another ion exchange resin, reducing heavy metals such as lead,
copper, aluminum, and water hardness.
14
Water passes through granulated activated carbon (GAC).
16
Water passes through an
Ultraviolet Water Sterilizer System
manufactured with axial flow reactors in 304 stainless steel. The hard glass germicidal lamps provide an economical way
of treating water requiring a 99.99% reduction of bacteria and virus and
protozoa. This process is accomplished without adding any harmful chemicals to
your drinking water.
CQ Ultraviolet Water Sterilizer System
is the most ecological way of treating your water.
17
Water travels through a .01 micron Ultrafiltration (UF) membrane.
Ultrafiltration. UF is effective for the removal of colloids, proteins,
bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative
bacterial endotoxins), other organic molecules larger than .01 micron, and most
other water contaminants known today.
Comes with a complete installation kit that includes a European
lead-free long-reach designer faucet, CQ 4 gallons stainless steel
pressurized holding tank with a polypropylene inner liner and a 3.2 gallon
capacity, all interconnecting color-coded tubing, filter cartridges,
Ultrafiltration membrane, RO membrane, wrenches and installation hardware. Please
NOTE: When considering installation, if current undersink plumbing is
hard copper tubing the saddle valve would be used; for flex tubing the T-valve
would be required.
Click drop down box at gpd to choose upgraded 75 or 100 gallons per day. Click valve drop down to choose valve required. Also click on boxes for any additional filtration you require added to this RO system (additional costs applied to total).
CQ Portable 10-stage filter Reverse Osmosis Countertop Water Filter System provides safe, pure high quality drinking
water with capacity of up to 50 gallons per day using Reverse Osmosis
technology. 50 gallons per day equates to a production of approximately 2
gallons per hour. Water pressure and water conditions can vary this amount.
Great for homes, apartments, office, recreational
vehicles, motels, during travel or in remote areas. No capacity upgrades
available for this system.
Purest Filters - Mailing
Address: 10159 41st Terrace Suite #217 Boynton Beach, FL
33436
TOLL FREE: 1-800-738-1750
DIRECT PHONE:
561-660-3250
**Free Ground Shipping in
Continental U.S. for all items under 80 lbs at shipping weight.
Those items above 80 lbs require additional shipping costs. Those
items are clearly marked.
*Price Match
Guarantee does
not include auction and bidding style competitors and web sites, or
competitors that are selling factory refurbished or not new in the
box items.
As we offer FREE Ground Shipping on most items - Price Match
Guarantee will match competitors price plus any shipping charges
they may apply to the item we are matching.
Price Match Guarantee is valid for day of sale only.
Lowest
Price Guarantee is only applicable to any item priced at $299.00 or
above.
